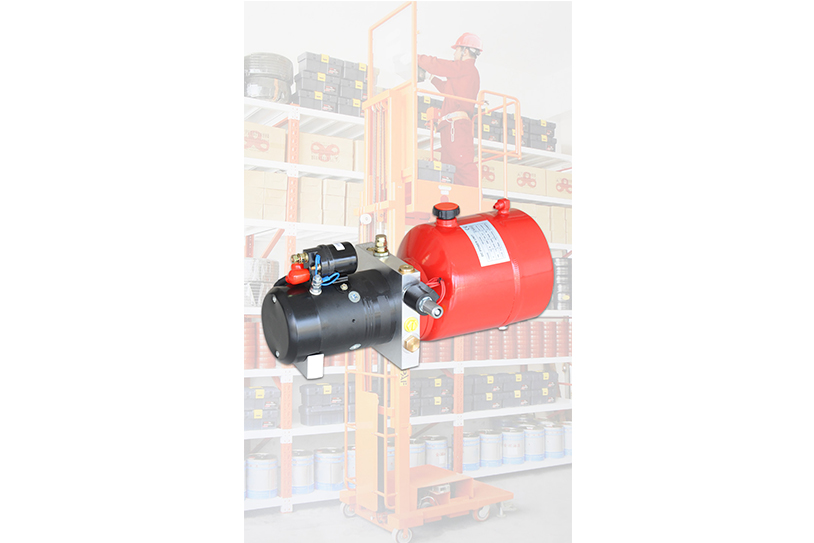

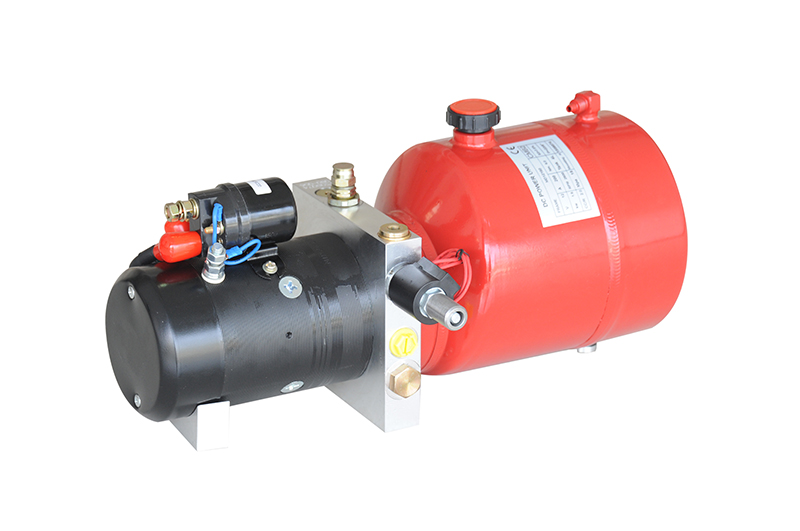

Mobile Aerial Order Picker Power Unit

Mobile Aerial Order Picker Power Unit

Specially designed for Single Mast Aerial Work Platform, CMB1 type manifold,

With the function of power lift and gravity lowering.

Solenoid valve control the lowing, The fixed compensated valve maintaining the lowering in steady speed.

With the design of two solenoids, can reduce the starting torque.

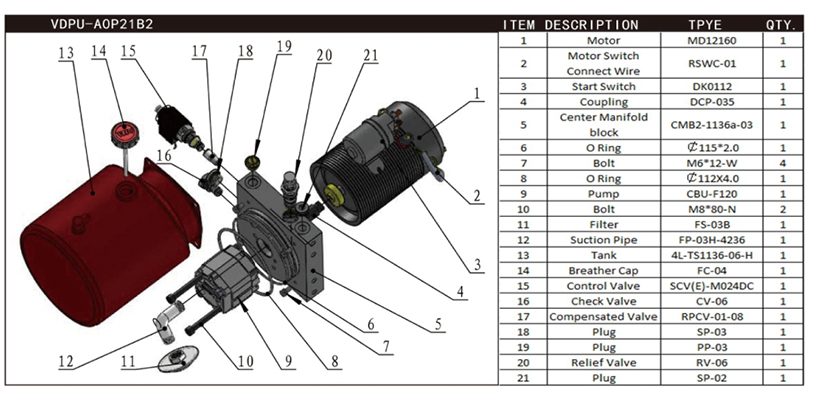

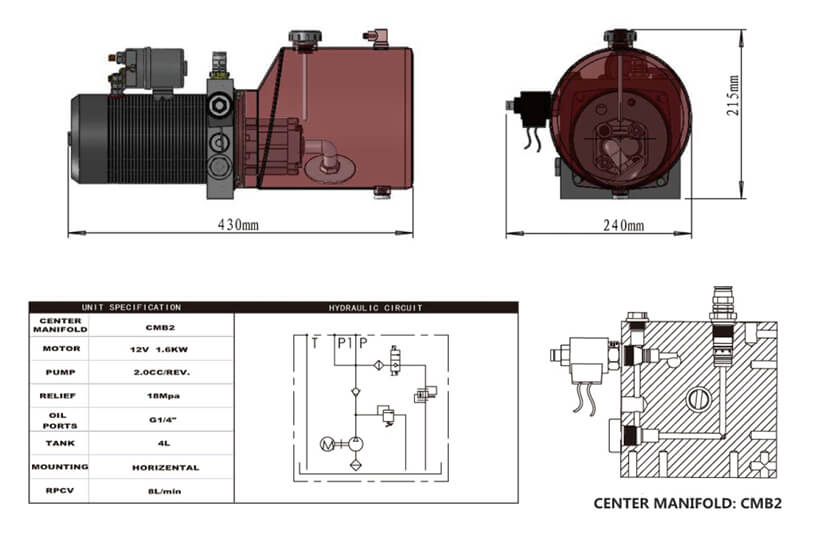

Technical Data and Drawing

Notes:

1. This power unit is of S3 duty, which can only work intermittently and repeatedly, i.e., 30 seconds on and 270 seconds off.

2. Make sure all the hydraulic parts cleaned before mounting the power unit.

3. VIBO products' warranty period is one year from delivery.

The product should be well protected from moisture and must be treated with care during storage, transportation and operation.
